Control System with POE Switch and RTOS

  • Qualcomm Snapdragon 820
  • NXP K66 running RTOS, K20
  • Broadcom BCM53128 GBE Switch
  • Hardware Design and Development
  • Firmware and Driver Development

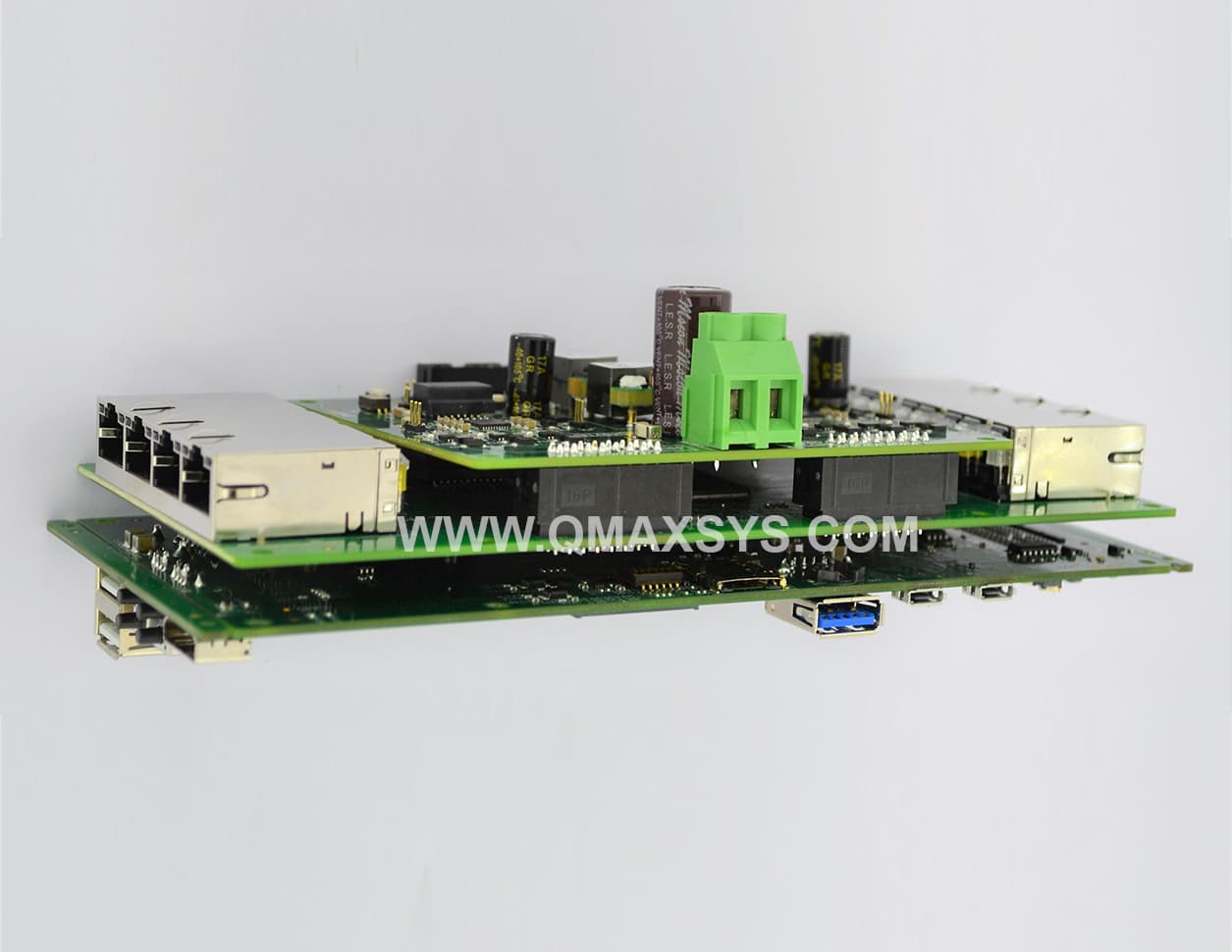

  • images/Control_system_with_POE_Switch_and_RTOS/Control_system_with_POE_Switch_and_RTOS-a.jpg
  • High Power POE Injector

Project Summary:

This project was designed and executed by Qmax for a US customer. It is used to control the actions of a mannequin used for training doctors. The system uses the powerful Qualcomm Snapdragon 820 Chipset. The unit can be POE powered and works as POE injector switch. Multiple similar units can be interconnected through LAN to perform specific functions. The system also has a K66 MCU which runs RTOS to control specific real time functions.

Important Parts:

  • Qualcomm Snapdragon 820
  • NXP Kinetis K66: 180MHz Cortex-M4F MCU
  • Broadcom Unmanaged Gigabit Ethernet Switch
  • Intel Ethernet Controller
  • NXP Kinetis K20: 50MHz Cortex-M4 Performance MCU
  • Texas Instruments HDMI Controller.
  • Microchip 7 Port USB Hub.
  • Analog Devices Power Source Equipment (PSE) Controller.

Salient Features:

  • Powerful application processor
  • RTOS for real time functions
  • High power POE injector switch
  • Multiple interfaces
  • On board Motor control drivers

Qmax Scope of work:

  • Schematics Entry
  • PCB Layout Design
  • PCB Fabrication and Assembly
  • Firmware development
  • Board Bring-up and testing
