Case Studies

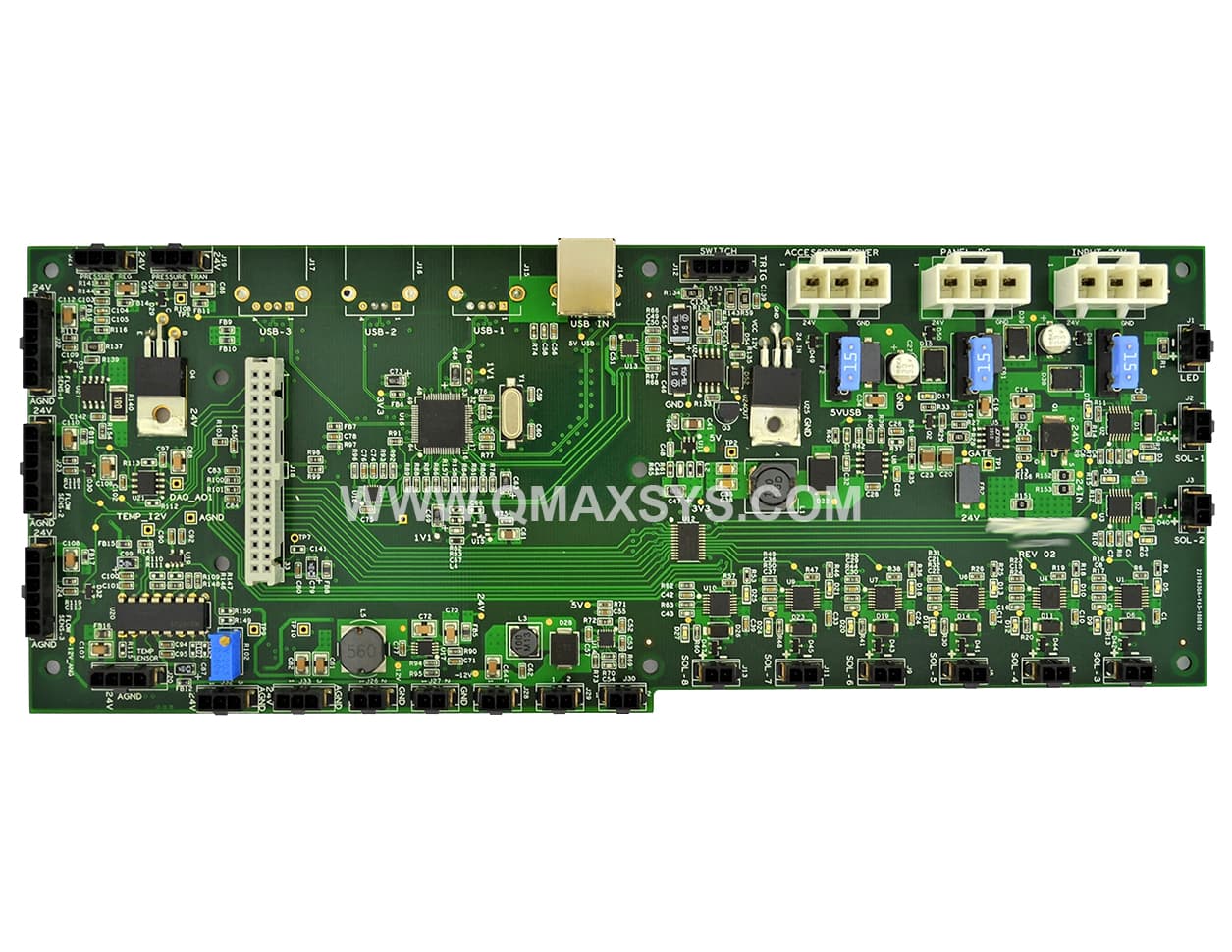

Precision Filtration Control System

  • Industrial Automation project
  • Complete design and development
  • Sensor inputs, I/O and Pump controls
  • Mixed Signal / High Current

Project Summary:

The precision pump control system was designed for a filtration products company. It is used for controlling a filtration unit with high accuracy and precision. The filtration unit consists of pumps and multiple sensors. Temperature and pressure and flow sensors are used to detect the condition of the fluid. The controller uses an Arm Cortex A53 to control the entire system. The device takes multiple sensor inputs and actuates solenoid valves and pumps based on embedded control logic. The inputs are all provided with ESD protection. The output lines are protected against Inrush and voltage spikes.

Important Parts:

  • Arm Cortex A53 SBC
  • Texas Instruments Precision Sensor Interface
  • Texas Instruments 4 Port USB 2.0 Hub
  • Texas Instruments Bi-Directional Voltage Level Translator
  • Texas Instruments PWM High Side Driver
  • Texas instruments Precision Power Switch
  • Texas Instruments Dual Op-Amp
  • Texas Instruments Step Down Converter

Salient Features:

  • Industrial Grade Design
  • ESD and EMI Protection
  • Mixed Signal Board
  • Multiple Sensors inputs

Qmax Scope of work:

  • Schematics Entry
  • PCB Layout Design
  • PCB Fabrication and Assembly
  • Firmware development
  • Board Bring-up and testing
