Security System Controller

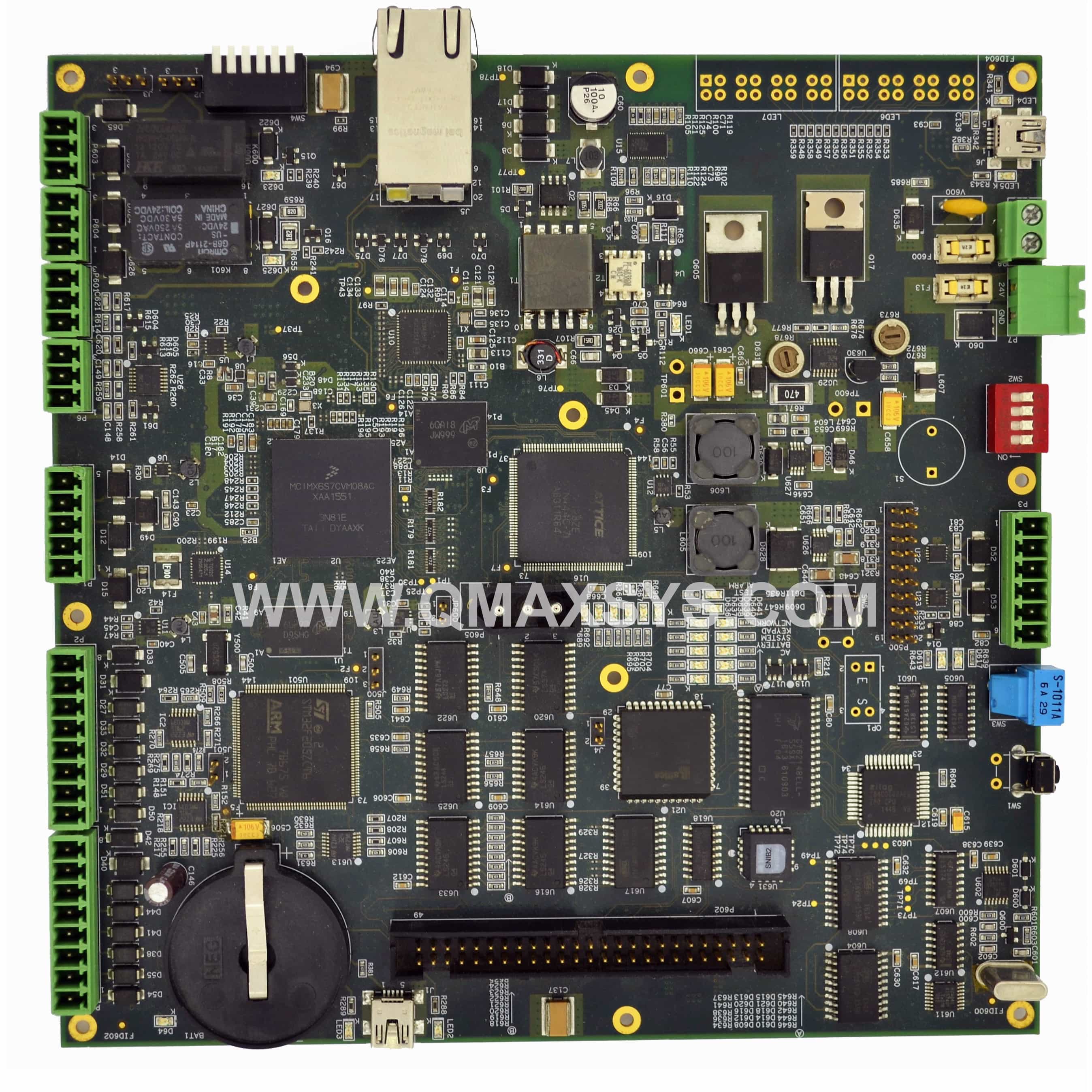

Security System Controller - Image 1
  • Hardware / Firmware design and Development
  • Mechanical /Enclosure Design / DFM
  • IMx6 CPU / STM32
  • Linux / RTOS
  • High Density Digital
  • FCC Class B certified
Project Summary:

It is a powerful Edge controller device used in high security applications with multi-protocol sensors and reader inputs. The system is powered through POE+ and has options for power backup using an external power supply or battery. It can work as a stand alone device or can be cascaded to control multiple access points.

Important Parts:
  • Freescale iMX6 Application Processor
  • ST Micro High Performance MCU
  • Lattice Programmable Logic Device
  • Linear Technologies POE+ Controller
Salient Features:
  • POE+ powered edge controller.
  • Multiple dedicated Processors.
  • Hardware encrypted communication.
  • Scalable from one to networked multi-unit configuration.
  • OSDP and Weigand Protocol for connection to card readers.
  • Auxiliary input and output.
  • Wet or Dry Relay setting.
  • Remote Firmware Upgrade
  • Built-in Inrush and overvoltage protection.
Qmax Scope of work:
  • Schematics Entry
  • PCB Layout Design
  • PCB Fabrication and Assembly
  • Board Bring-up and testing
  • ID / Enclosure Design
