Project Summary:

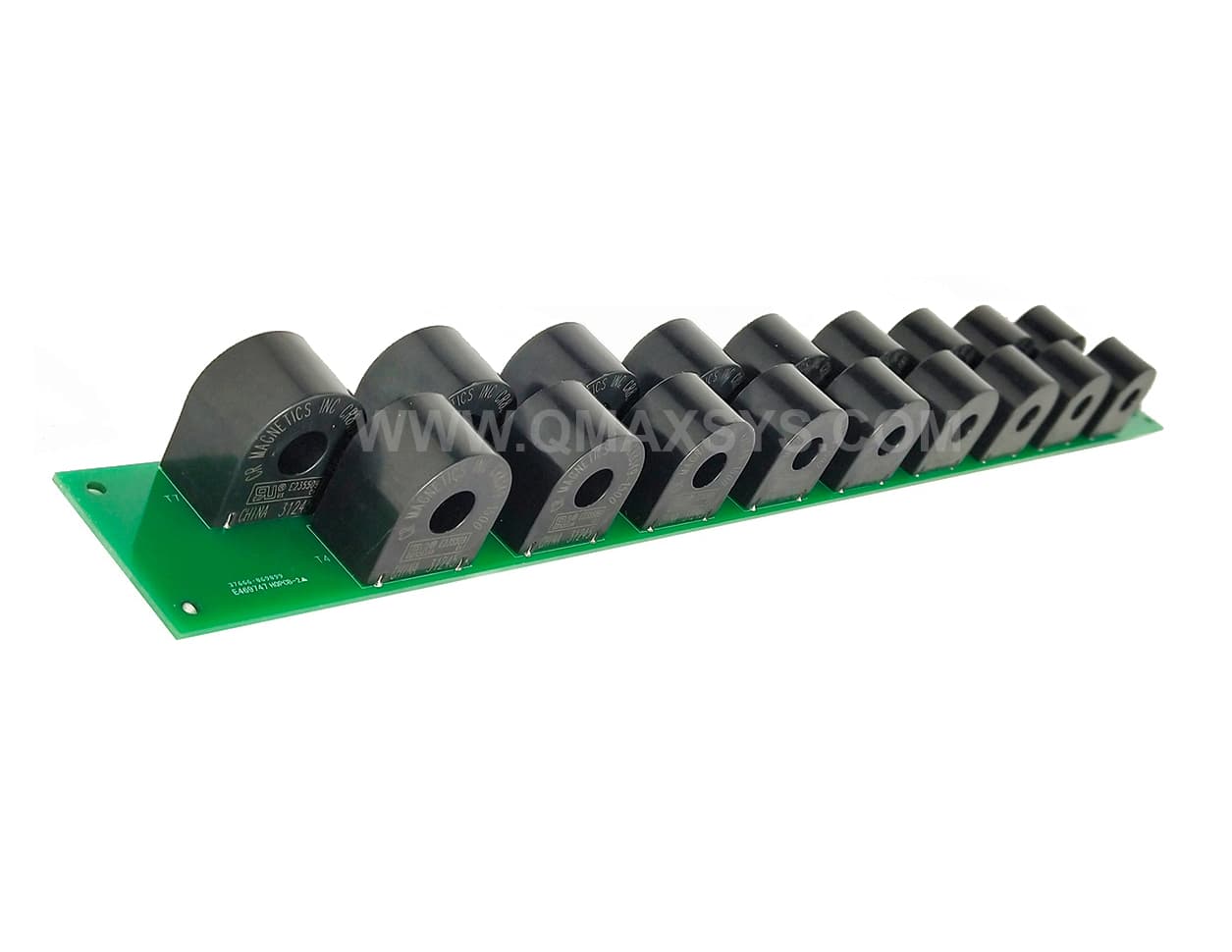

The power measurement system is designed based on a MSP430F6779 Polyphase Phase Metering SOC. It is used to measure the energy flowing in different branches of a power supply network. The PCBA is designed to fit inside a Distribution box besides a Miniature Circuit breaker.

Voltage samples are fed to the board through a Potential transformer and voltage divider arrangement. Current samples are fed through a current transformer. The MSP430 MCU applies a digital signal processing algorithm to compute power and other parameters.

Important Parts:

  • Texas Instruments Polyphase Phase metering SOC
  • Quad, 3MHz, Low-Power, Low-Noise, RRI/O, 1.8V CMOS Op-Amp
  • MOSFET Array
  • Low-Voltage 27V PMOS-NMOS Bridge Driver
  • CR Magnetics Current Transformer

Salient Features:

  • In-situ measurement of Electrical Parameters
  • Highly Accurate and precise
  • Specially designed PCB to fit Distribution box

Qmax Scope of work:

  • Schematics Entry
  • PCB Layout Design
  • PCB Fabrication and Assembly
  • Firmware development
  • Board Bring-up and testing
