Premium CNC-Machined Aluminum Fanless Enclosure for a 4K Digital Signage Player
Project Overview
A leading automotive retail SaaS provider in the USA needed its own media player product to display managed signage content alongside live TV in the customer lounges of luxury car showrooms — environments where the hardware itself is on display and must look the part. The customer's brief was explicit: the enclosure had to look and feel premium. Qmax Systems delivered the complete product; this case study covers the mechanical and industrial design — a sleek, CNC-machined aluminum enclosure that doubles as the product's heatsink, enabling silent, fanless 24/7 operation. Qmax owned the mechanical workstream end to end: industrial design, thermal architecture, machining and finishing design, DFM, prototyping, validation, and mass production support.
For the complete electronics and firmware story, see the Rugged Android Digital Signage Player full product development case study at /case-studies/rugged-android-digital-signage-player.
Product Brief
The product is a fanless, wall-mountable 4K digital signage media appliance installed behind or beside commercial displays in showroom lounges. Mechanically, it is defined by two competing demands: showroom-grade aesthetics — a sand-blasted, matte black anodized aluminum body that belongs in a luxury retail space — and hard engineering reality: a quad-core media processor decoding 4K video around the clock across multiple wired and wireless interfaces, generating significant sustained heat that must be removed silently, with no fan, no vents disturbing the clean form, and no maintenance for years of 24/7 duty.
The IP54-rated, ITE-grade enclosure also serves as the product's EMI shield and structural chassis.
Qmax Scope
Qmax Systems delivered the complete mechanical and industrial design scope for the fanless digital signage appliance:
- Industrial design and styling — premium machined form language and finish direction for luxury retail environments
- Mechanical and thermal enclosure architecture — fanless design with the enclosure body engineered as the system heatsink
- Material and finish selection — aluminum grade, sand-blasting texture, anodizing specification, and overlay materials
- Design for CNC manufacturing — machining strategy, tolerances, and finishing process flow for repeatable volume production
- Prototyping and thermal validation of machined samples before production release
- Testing and validation (thermal cycling, ingress, drop, life cycle) and mass production support to 2,000+ units
Design Challenges & Resolutions
Showroom-grade premium aesthetics

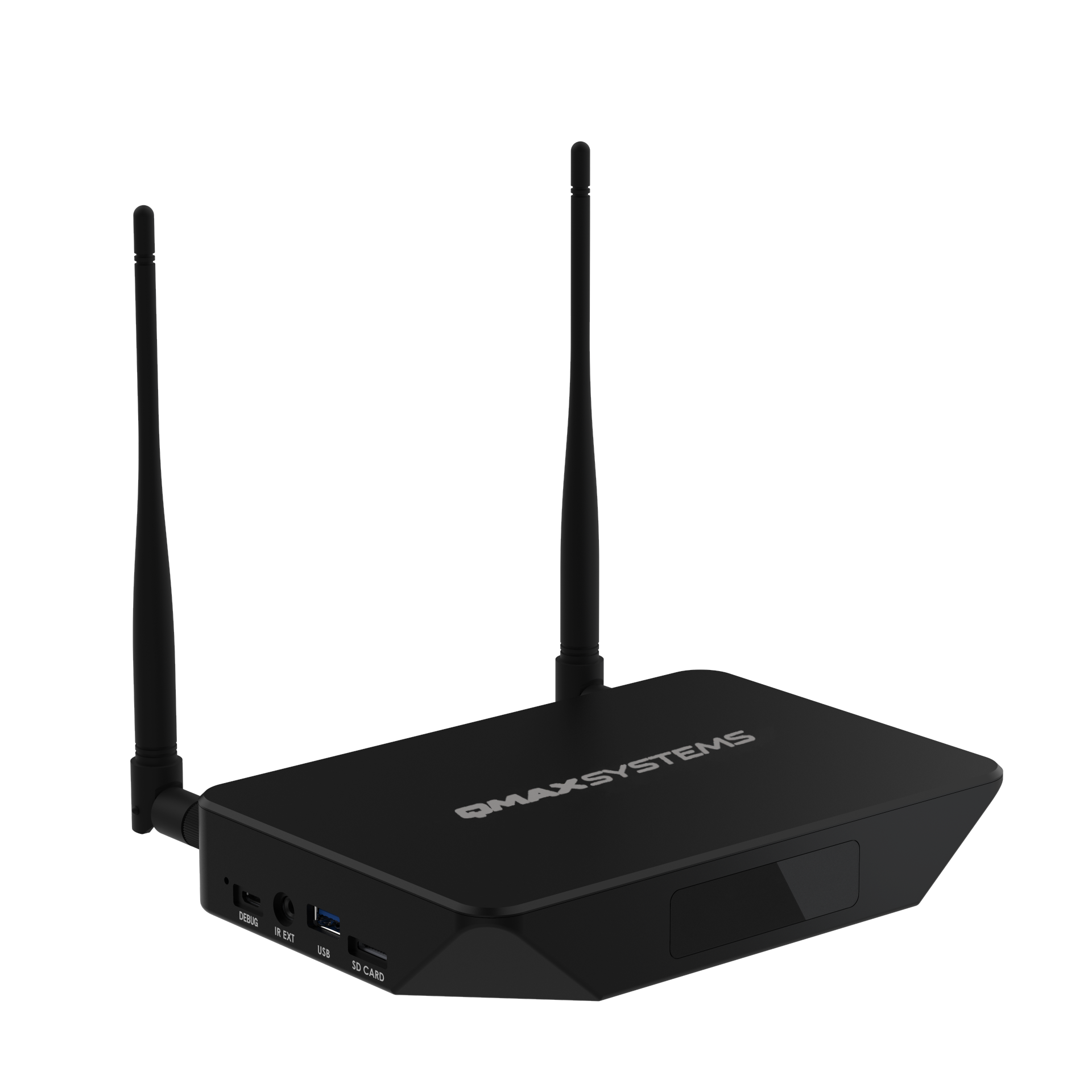

A sleek, minimal machined-aluminum form with sand-blasted matte black anodized finish, engineered to sit in luxury car showroom lounges without looking like IT equipment
Fanless cooling of a 4K media processor
The entire enclosure was engineered as the heatsink: heat from the processor is conducted through a thermal interface directly into the aluminum body and spread across its full surface area, eliminating the fan altogether
24/7 continuous operation
Thermal mass and surface area sized so the processor stays within limits during sustained round-the-clock video decoding at up to +55 °C ambient, validated by extended thermal soak and cycling
Silent, zero-maintenance reliability
No fan means no noise in a customer lounge, no dust pumped through the electronics, and no moving parts to fail over years of continuous duty
EMI shielding for a high-speed, multi-interface product
The machined aluminum body forms a continuous conductive shield around the electronics, directly supporting the product's FCC certification
Wireless antennas inside a metal enclosure
Resolved the fundamental conflict between a full-metal body and multiple radios through engineered RF-transparent windows and antenna placement, preserving wireless performance and FCC compliance
Precision interface cutouts
Tight-tolerance machined openings for the product's multiple video, network, and power interfaces with clean anodized edges and gap-free connector fitment
IP54 protection on a passively cooled enclosure
Sealed the housing against dust and splashes while keeping the exterior surfaces fully available for heat dissipation and the form vent-free
Materials & Key Mechanical Components
CNC-machined aluminum enclosure
Chosen for its thermal conductivity (the enclosure is the heatsink), EMI shielding, structural rigidity, and premium feel
Sand-blasted, matte black anodized finish
Delivers the luxury-retail appearance while providing a durable, scratch- and corrosion-resistant surface
Thermal interface materials
Engineered conduction path coupling the processor to the enclosure body
Polycarbonate overlay
Serving the front window and branding surface while acting as an RF/IR-transparent zone in the metal body
Sealing gaskets and stainless fasteners
Maintaining IP54 integrity and finish quality through repeated service access

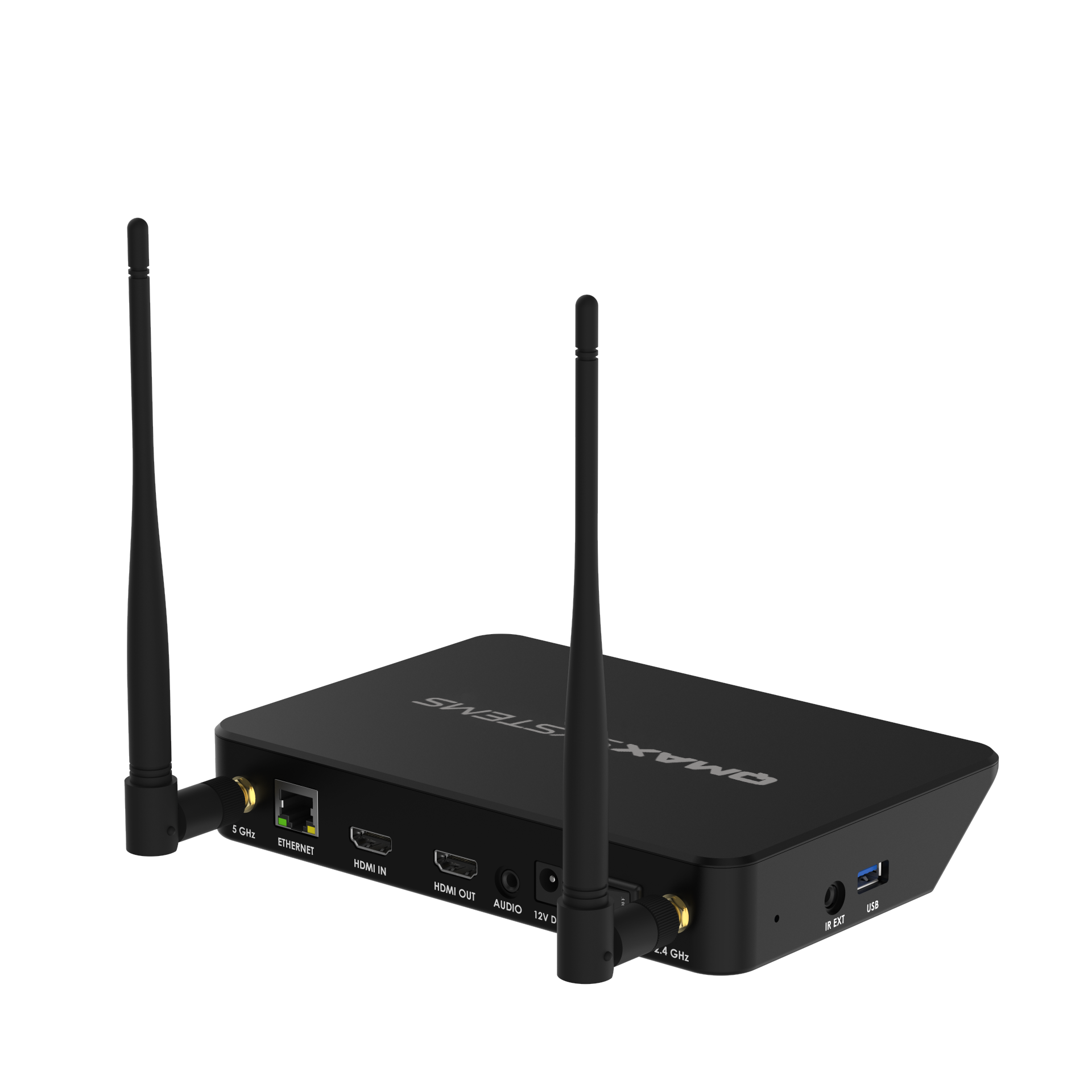

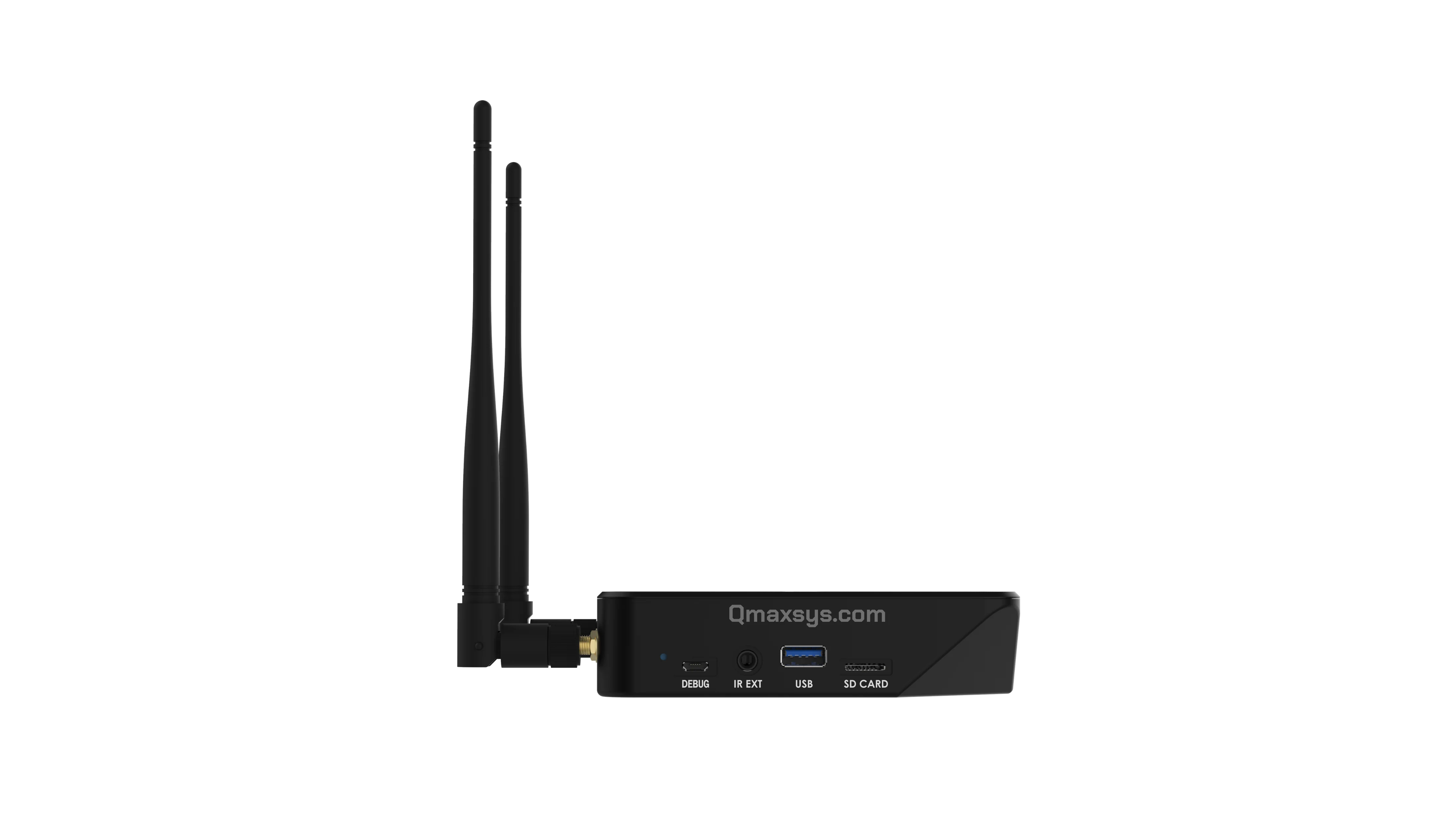

Sealed Openings & External Interfaces

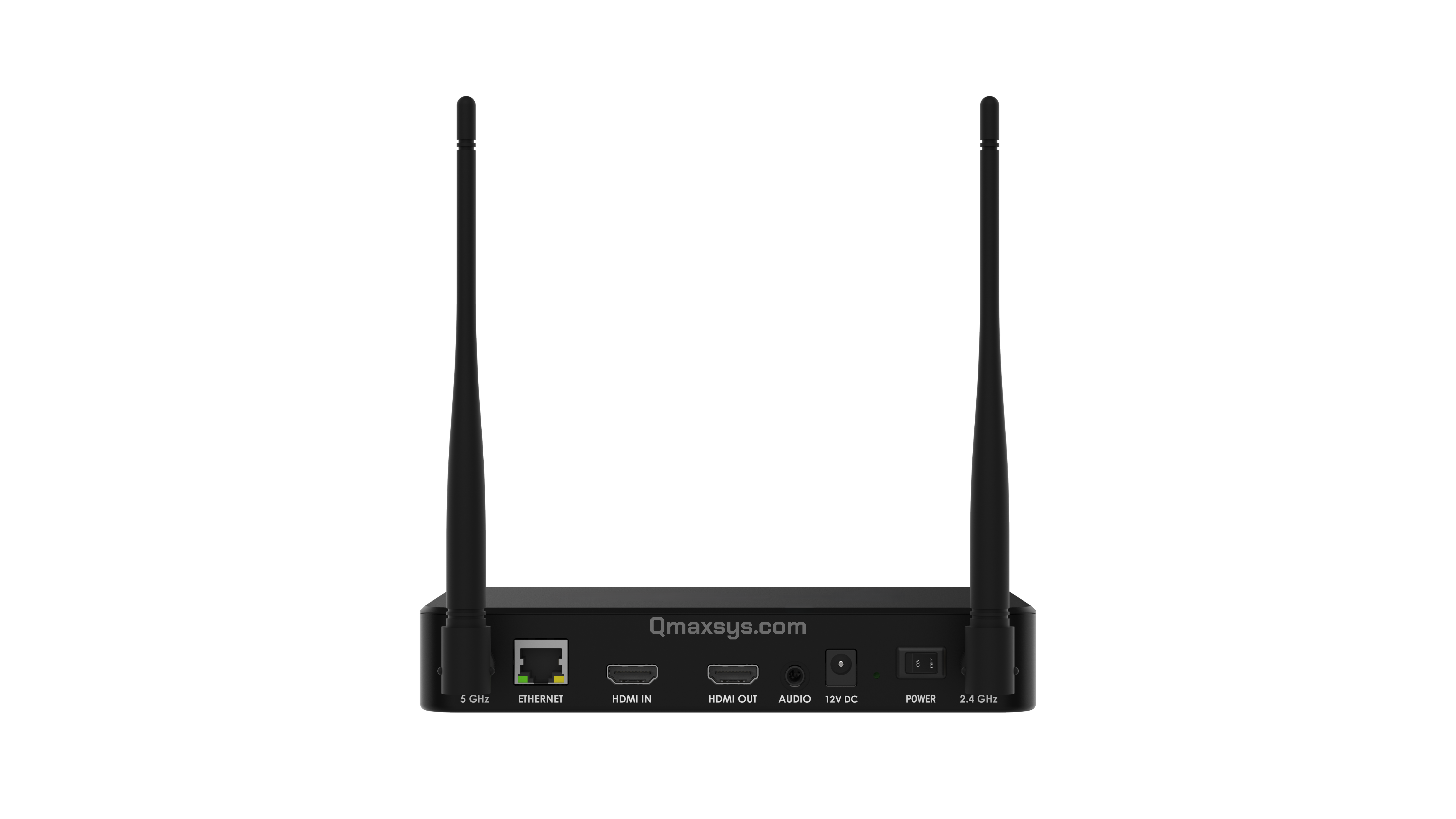

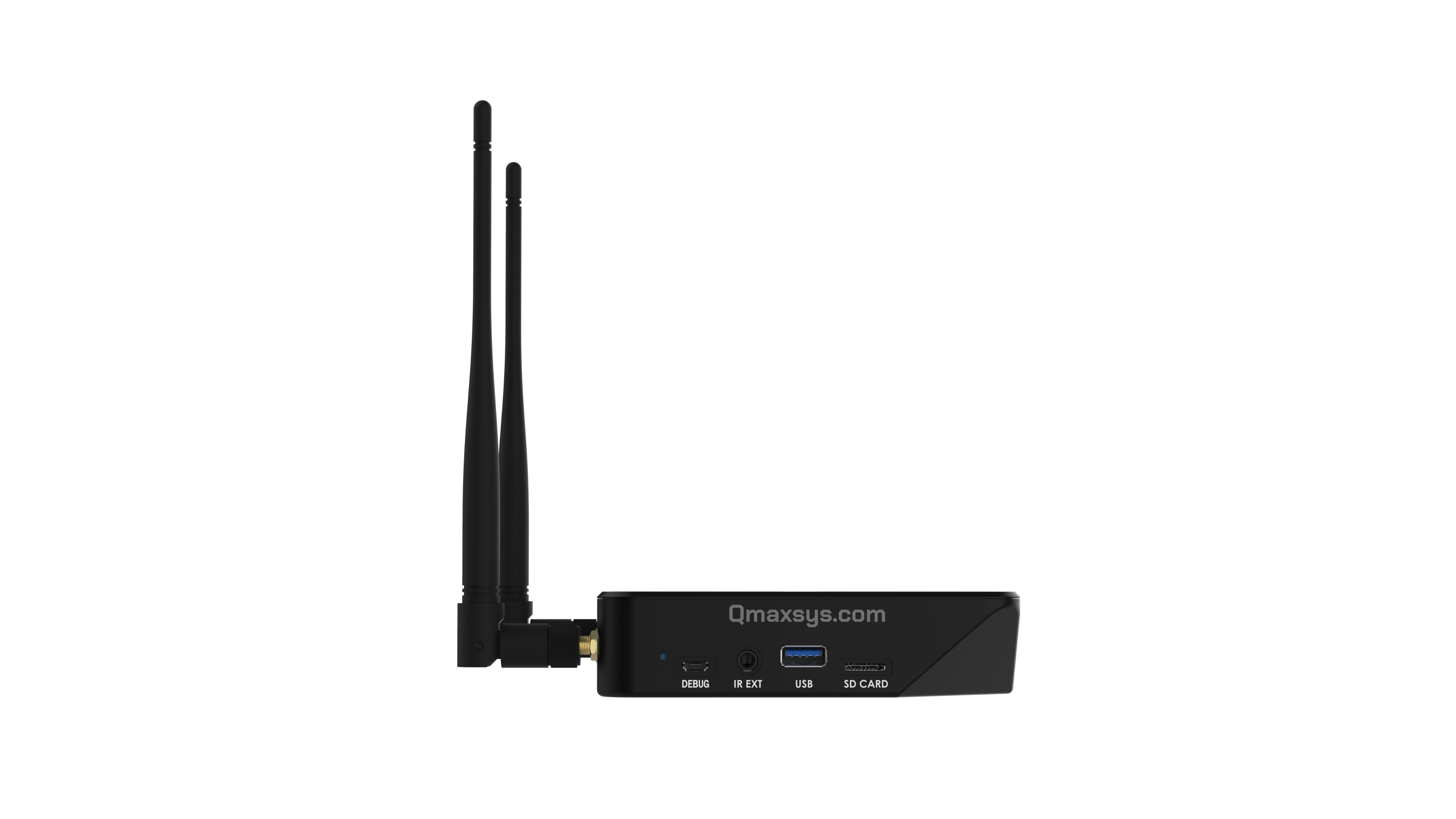

Video interface cutouts
Precision-machined HDMI input/output openings with tight connector fitment
Network / PoE port
Machined opening supporting single-cable power-plus-data installations
Power inlet
Sealed entry for the UL-certified power adapter connection

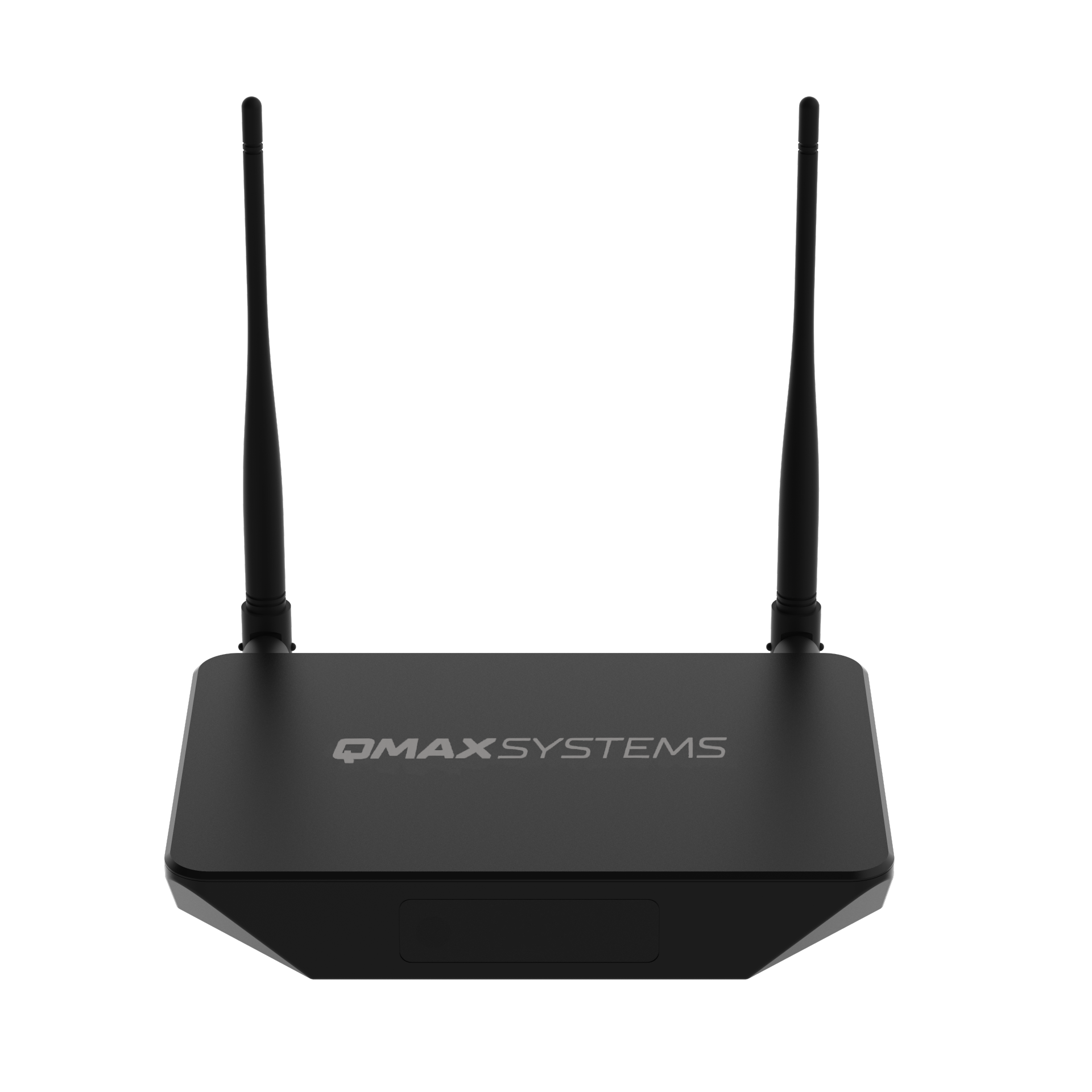

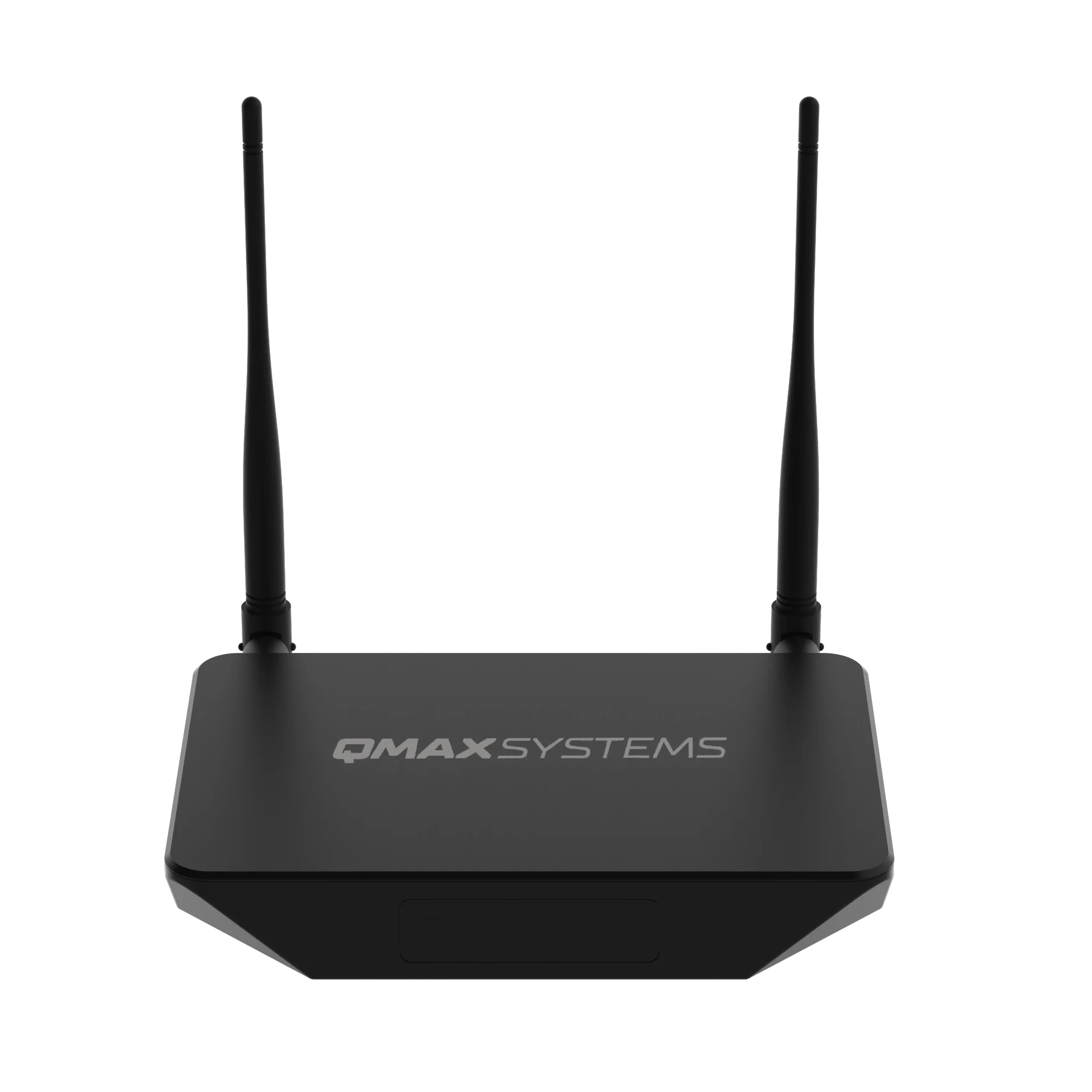

IR / front window
Polycarbonate overlay zone for remote-control reception and product branding
Wall-mount features
Integrated mounting provisions machined into the body, keeping thermal surfaces effective in the installed orientation
Manufacturing & Production
Qmax supported the enclosure from CNC prototyping through volume machining and finishing:
CNC machining
Aluminum enclosure machined with a strategy optimized for cycle time and repeatability at volume
Sand blasting and black anodizing
Process parameters controlled for consistent texture and color across production batches
DFM refinement
Features, radii, and tolerances refined to hold the premium fit and finish while keeping machining cost in check
Volume production
2,000+ units machined, finished, assembled, packed in retail-style cartons, and shipped to the customer
Testing & Validation
Mechanical qualification was performed on production-representative units:
- Thermal cycling and sustained soak — Passed, confirming fanless operation across the 0 to +55 °C range
- Dust ingress testing — IP54 rating verified per IEC 60529 on production-representative units
- Drop and life-cycle testing — Drop testing and fatigue / life-cycle testing — passed
- FCC certification support — FCC certification achieved — with the enclosure's EMI shielding and RF window design validated as part of product compliance
Technical Specifications
Summary
Qmax Systems delivered the complete mechanical and industrial design of a premium, fanless digital signage appliance — a CNC-machined, matte black anodized aluminum enclosure that is simultaneously the product's heatsink, EMI shield, and showroom-grade exterior. Over 2,000 units have been manufactured and deployed in luxury automotive showrooms across the USA, running silently 24/7 with all validation targets met.
The project demonstrates Qmax's ability to unite industrial design, passive thermal engineering, and precision machining in one manufacturable product — balancing luxury retail aesthetics with fanless 24/7 thermal performance, EMI shielding, and IP54 protection in a single aluminum body.
Qmax Systems delivers mechanical engineering end to end — industrial design, passive thermal architecture, CNC machining and finishing, DFM, prototyping, environmental validation, and mass production support.
